Includes
SINTL PVS-14 External Battery Adapter™PDF Download
Description

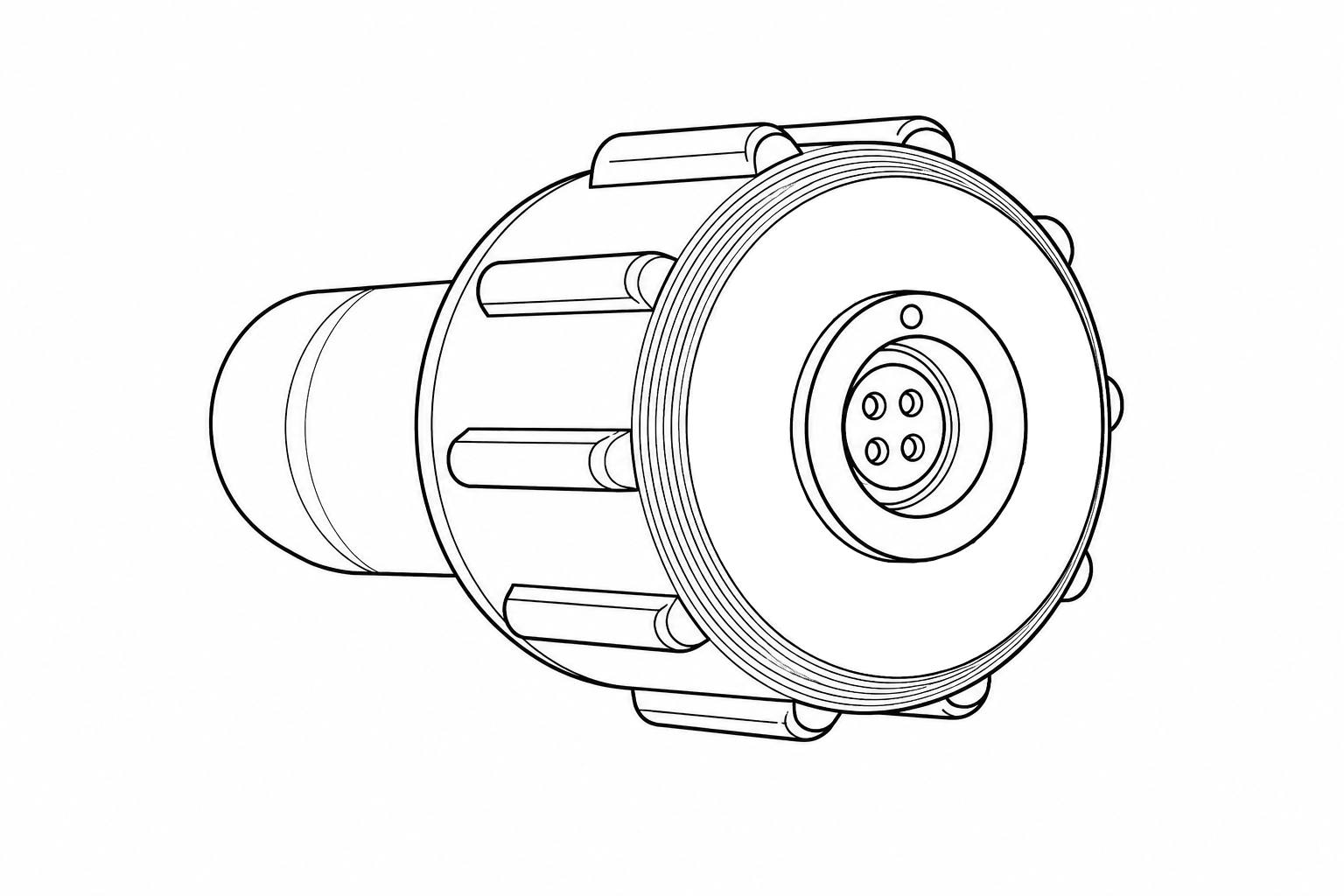

The PVS-14 External Battery Adapter™ is a patent-pending power solution designed to extend the operational endurance of PVS-14 Night Vision Monoculars through integration with an external battery pack. Weighing just 19.8 grams—less than a standard AA battery—the adapter provides a lightweight solution for extended-duration operations without adding unnecessary equipment burden.
In continuous testing, the adapter successfully powered a PVS-14 for 90 consecutive hours, providing dependable performance for sustained field use.
The adapter contains a unique circuit board that takes the two 3V circuits from the external power supply and converts them to a single 1.5V circuit conditioned to behave exactly like an AA battery.

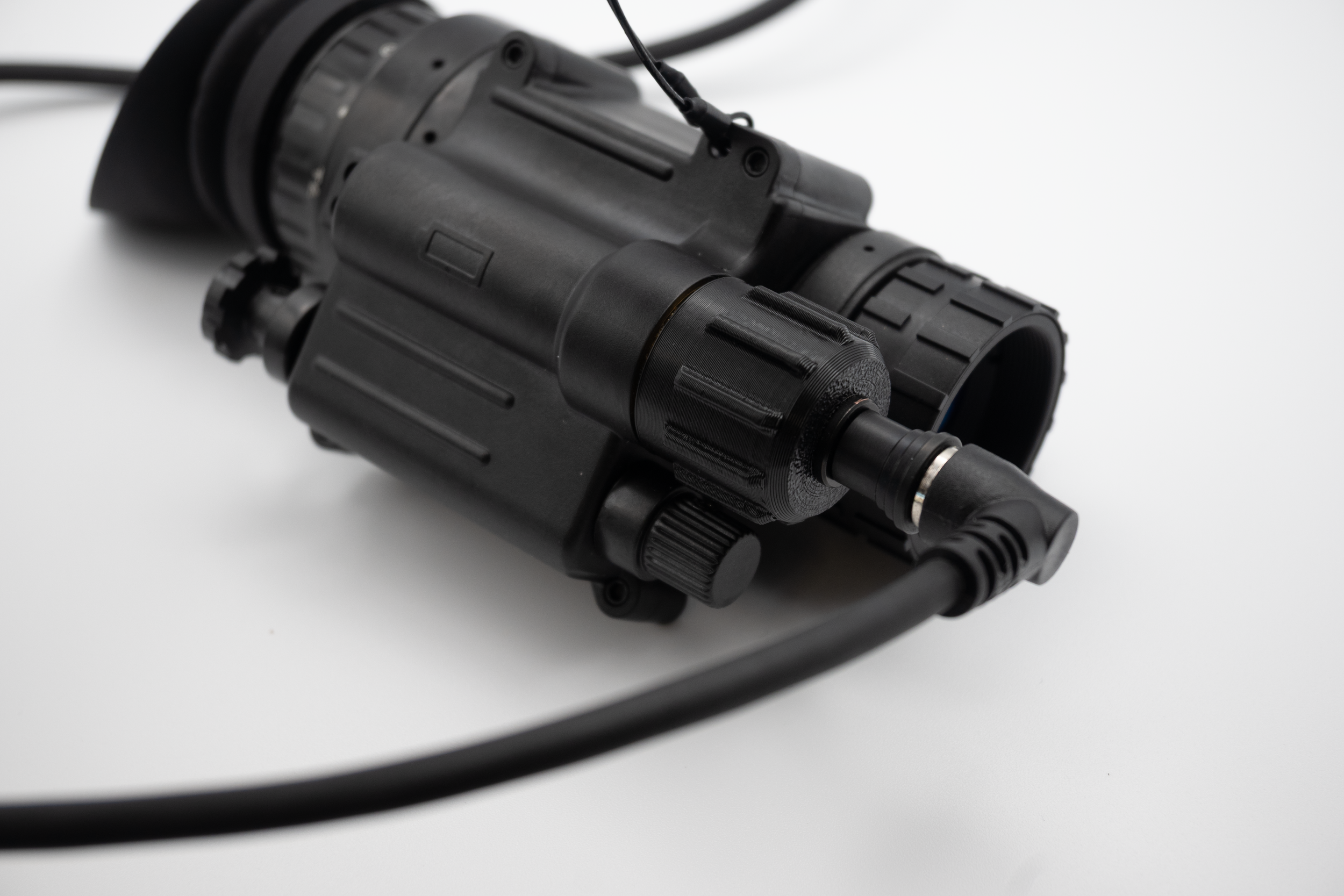

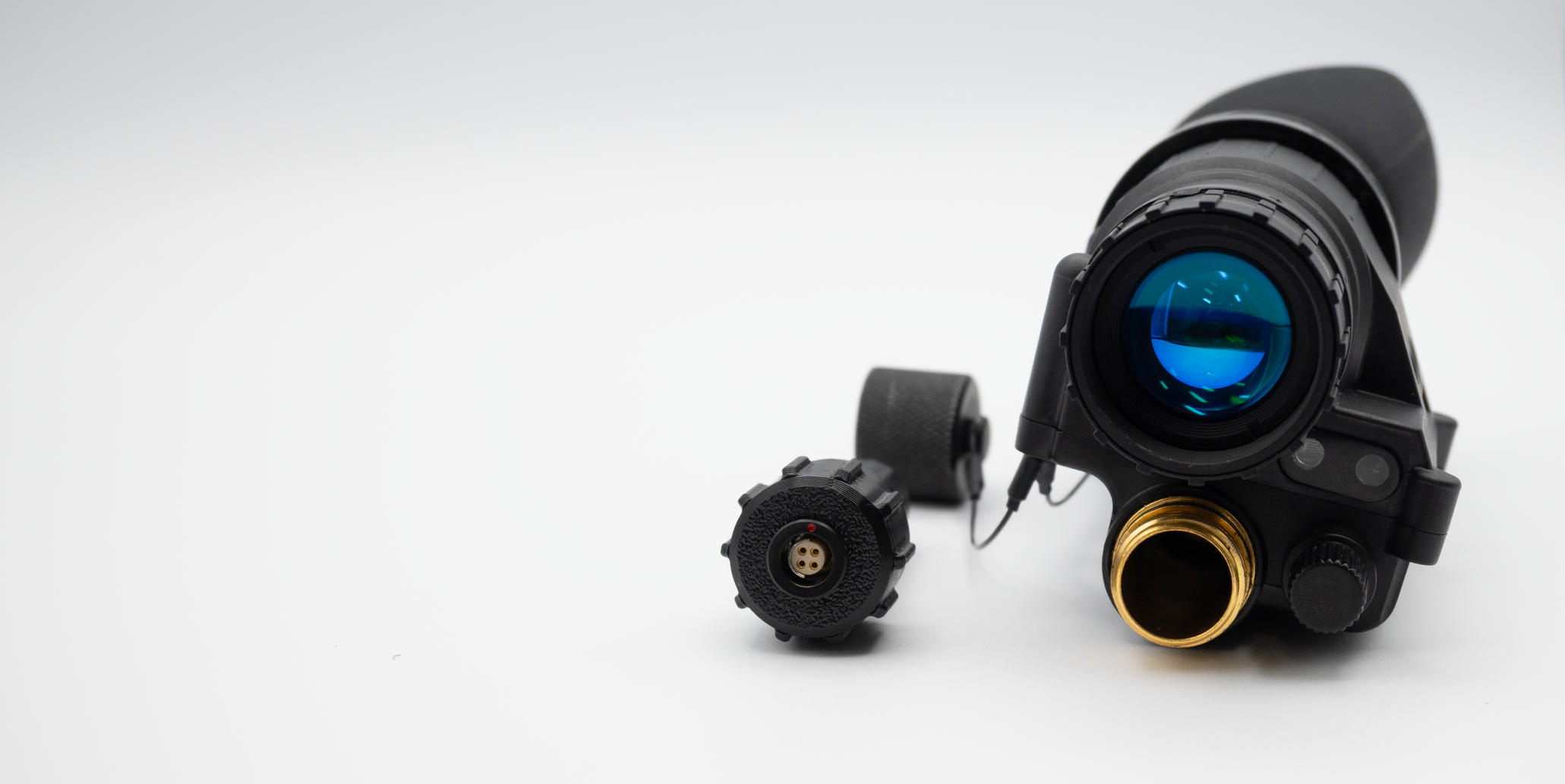

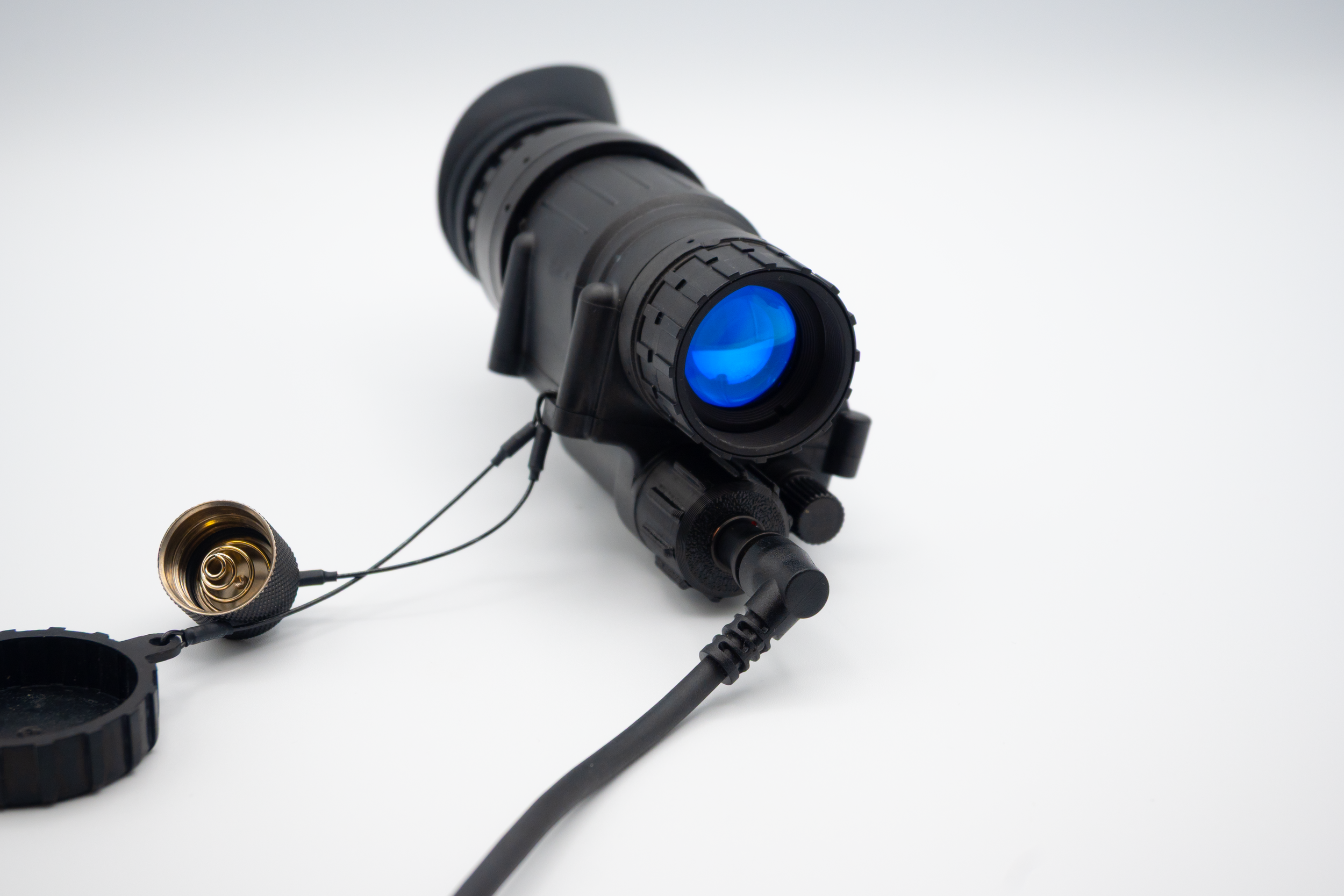

Designed for direct installation into the PVS-14 battery compartment, the adapter replaces the existing battery and its cap to provide a secure connection to an external battery pack. Its straightforward configuration allows operators to rapidly integrate extended power capability while maintaining a compact, mission-ready setup.
For optimal performance, high-quality lithium AA batteries are recommended for the external battery pack.
Key Benefits
- Extends PVS-14 operational runtime through external power
- Demonstrated 90-hour continuous operation
- Ultra-lightweight 19.8 g construction
- Direct integration with the existing PVS-14 battery compartment
- Simple, field-ready installation
- Designed for sustained military, law enforcement, and professional operations
Technical Specifications
| Weight | 19.8 g |
| Continual Operating Time | 90 Hours |
| Dimensions | 60.15 × 24.58 × 24.58 mm |
| Housing Color | Black |
| Input Port | Fischer 4 Pin Connector |
| Input Voltage | Designed to operate from 1.5 – 5 volts |
