Description

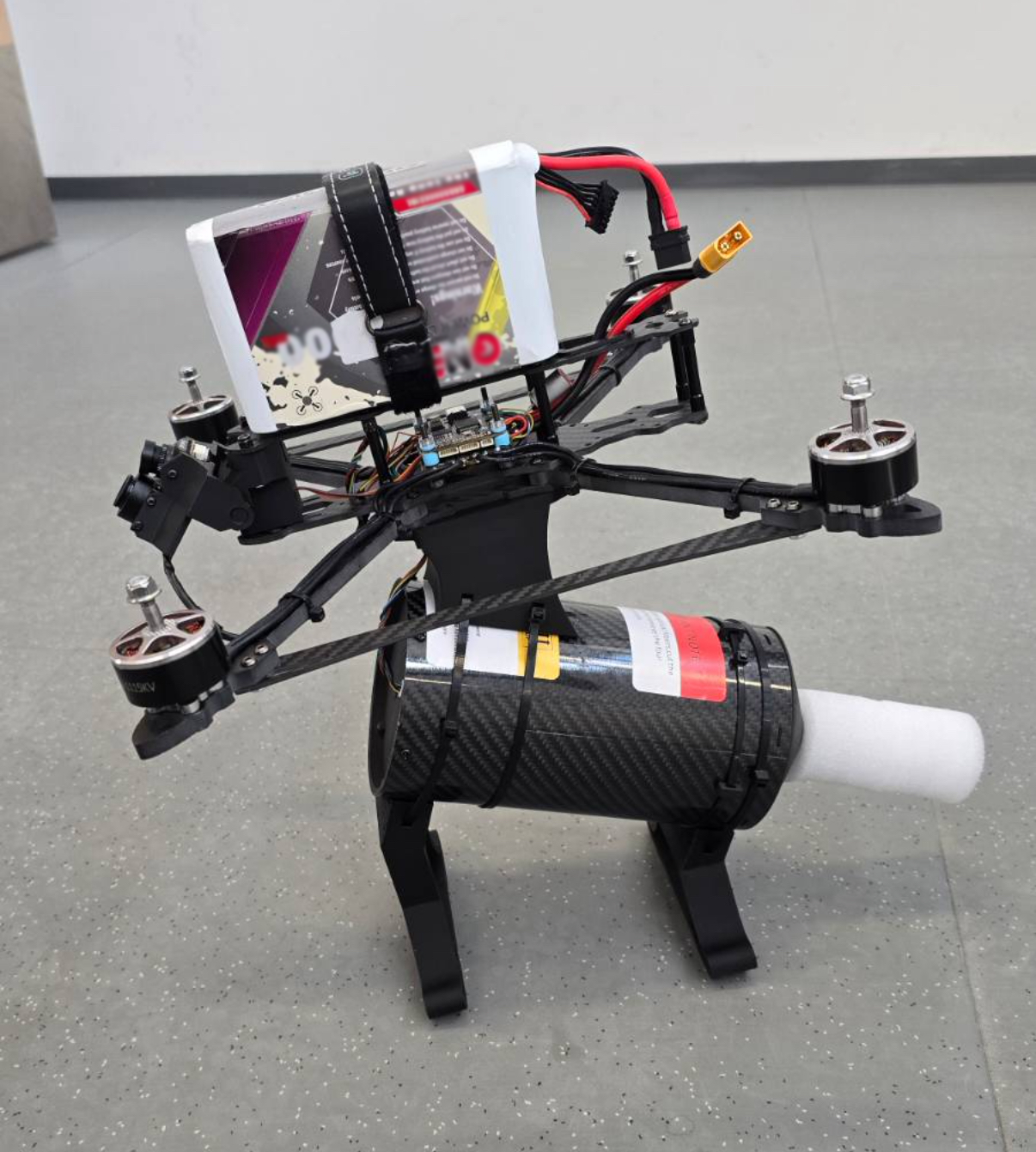

The Stillwood International FPV Drone is a lightweight, high-performance platform engineered for speed, agility, and operational versatility. Built around an 8-inch carbon fiber frame with an F4 flight controller and 60A ECS system, it delivers reliable performance in demanding environments.
Equipped with an analog micro camera, analog video transmitter, ELRS receiver, and high-efficiency motors supporting up to 35V, the system is optimized for responsive flight control and stable video transmission. With a maximum payload capacity of 3kg, speeds up to 140 km/h, and up to 12 minutes of flight time, the drone is designed for both tactical and specialized mission applications.
Technical Specifications
| Frame | Carbon fiber |
| Propellers | 8 inch, 3 blade, plastic |
| Stack | Flight controller with F4 processor, ECS 60A |
| Weight | 0.55kg / 1.2lb w/o battery |
| Camera | Analog micro sized camera |
| Maximum Payload | 3kg |
| VTx | Analog video transmitter |
| Maximum Flight Time | 12 min. hover, no wind conditions, 5°C temperature, with payload, battery type: Li-ion 6S 8000mAh |
| Antenna | Circular polarized antenna |
| Maximum Speed | 140km/h in ideal conditions, battery type: LiPo 6S 2200mAh |
| Motor | DC motor up to 35V |
| Receiver | ELRS modulation |
Includes

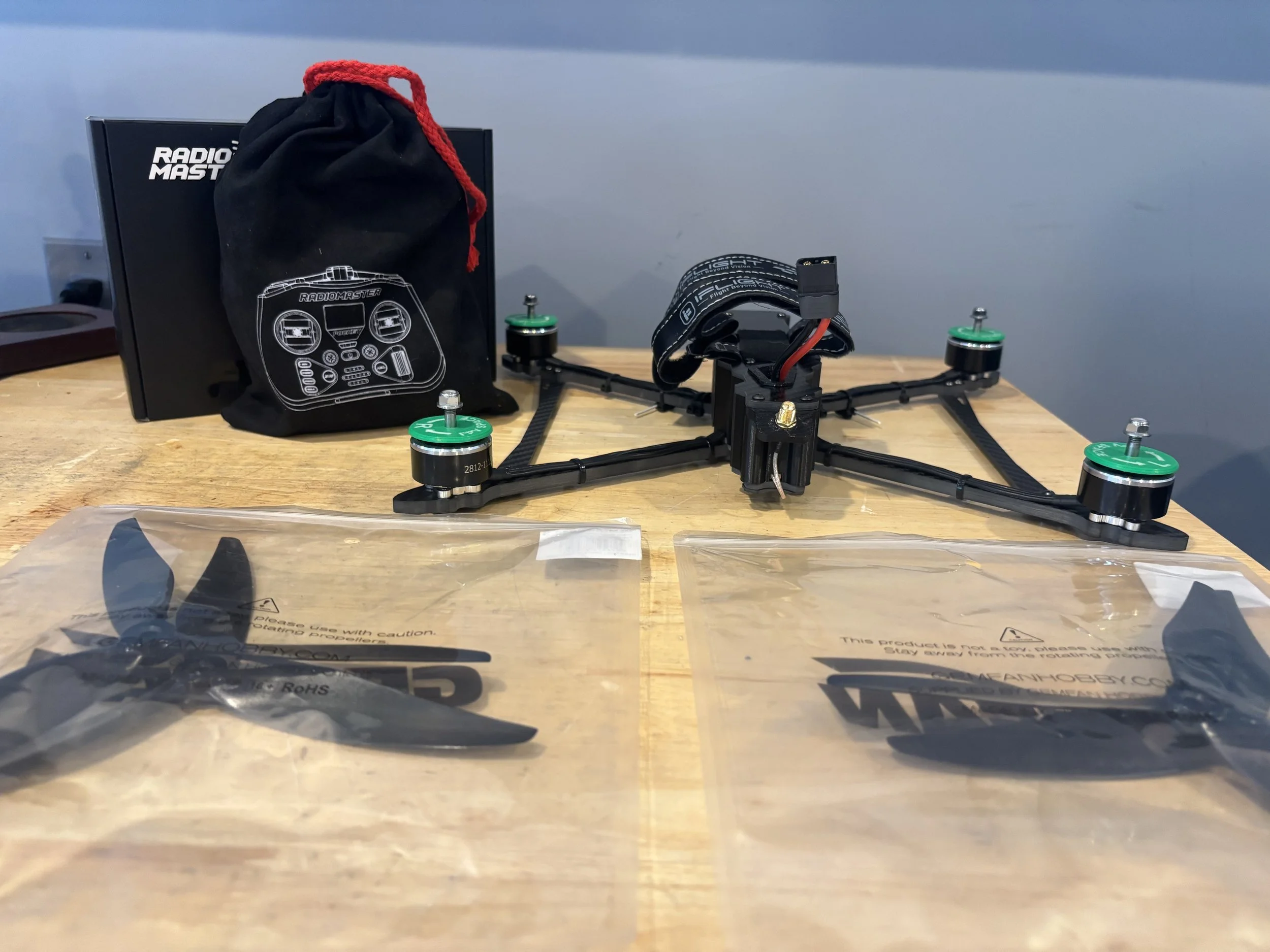

SINTL KS8 FPV DroneKS8 Remote ControllerFPV GogglePropeller Blades xDrone BatteryLanyardLens Cleaning TissueTube Data SheetDigital Manual
