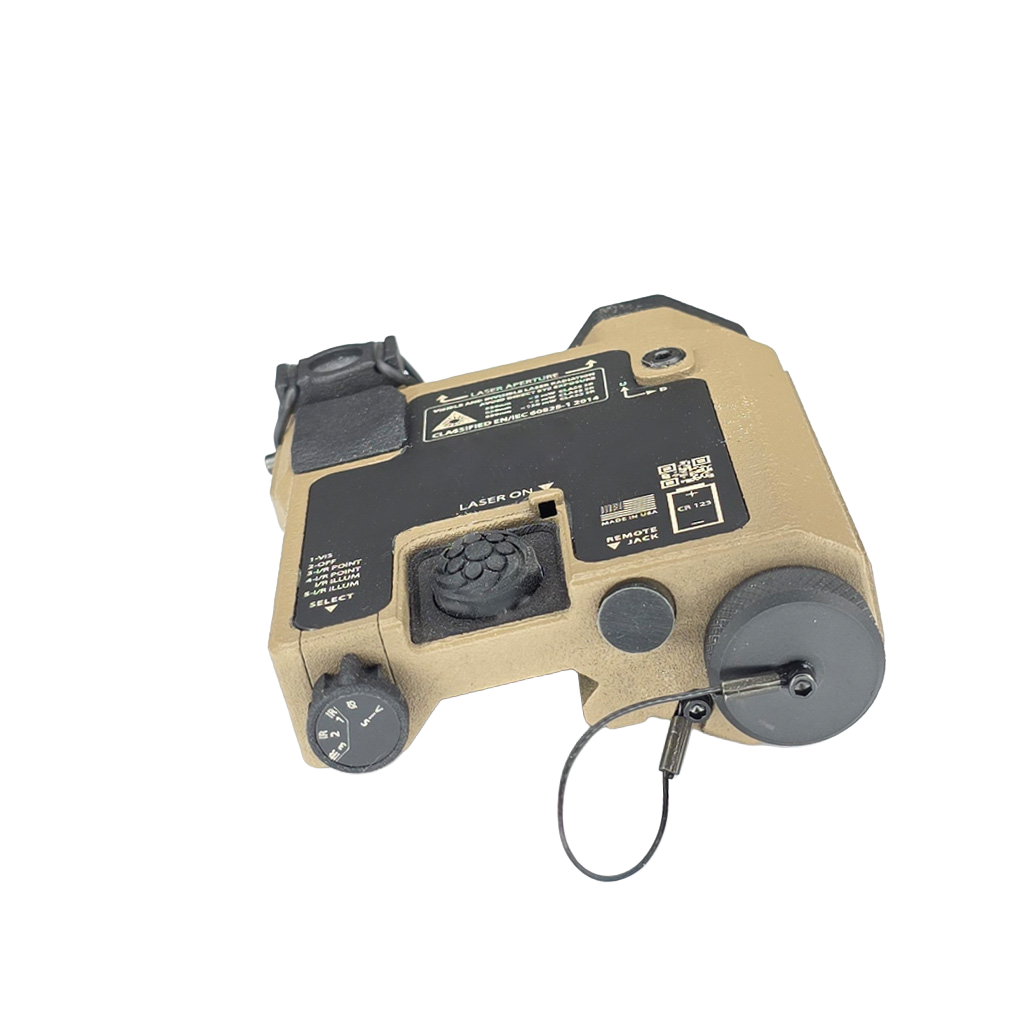

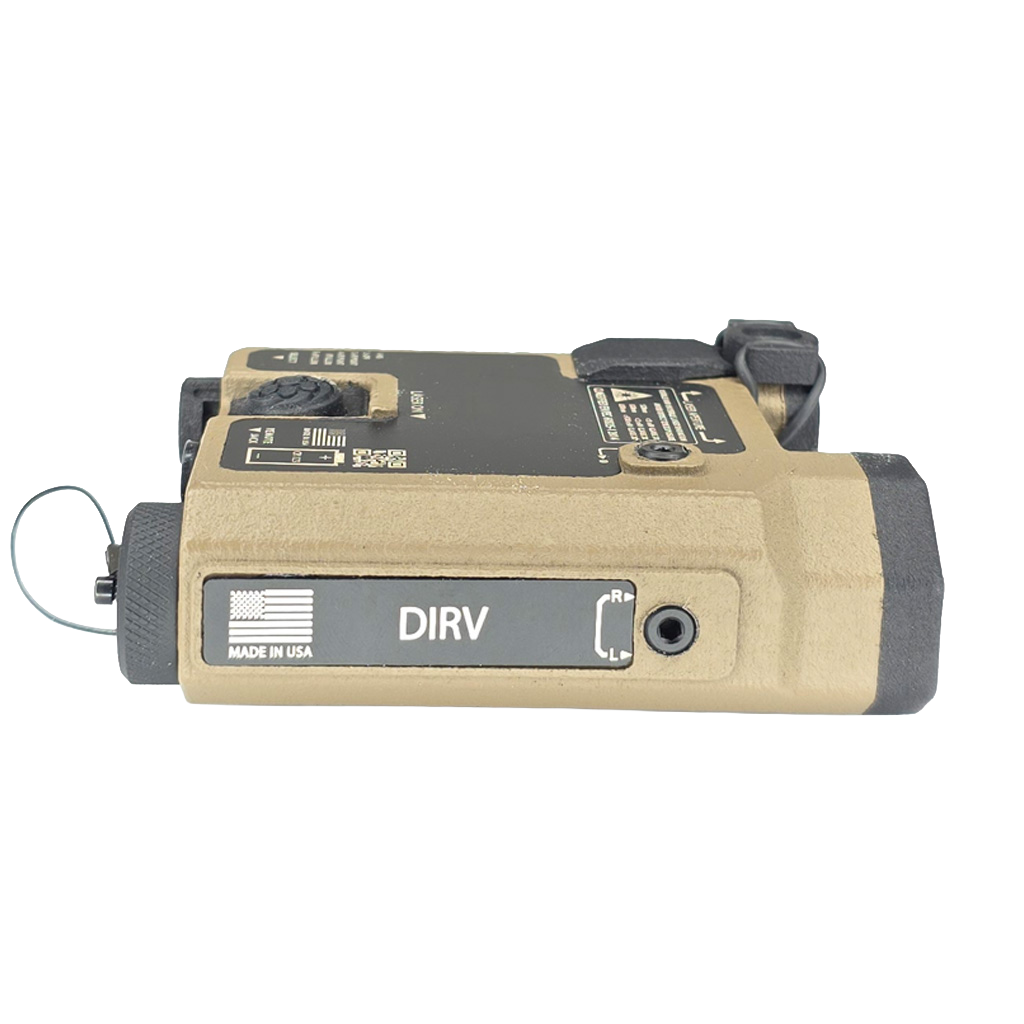

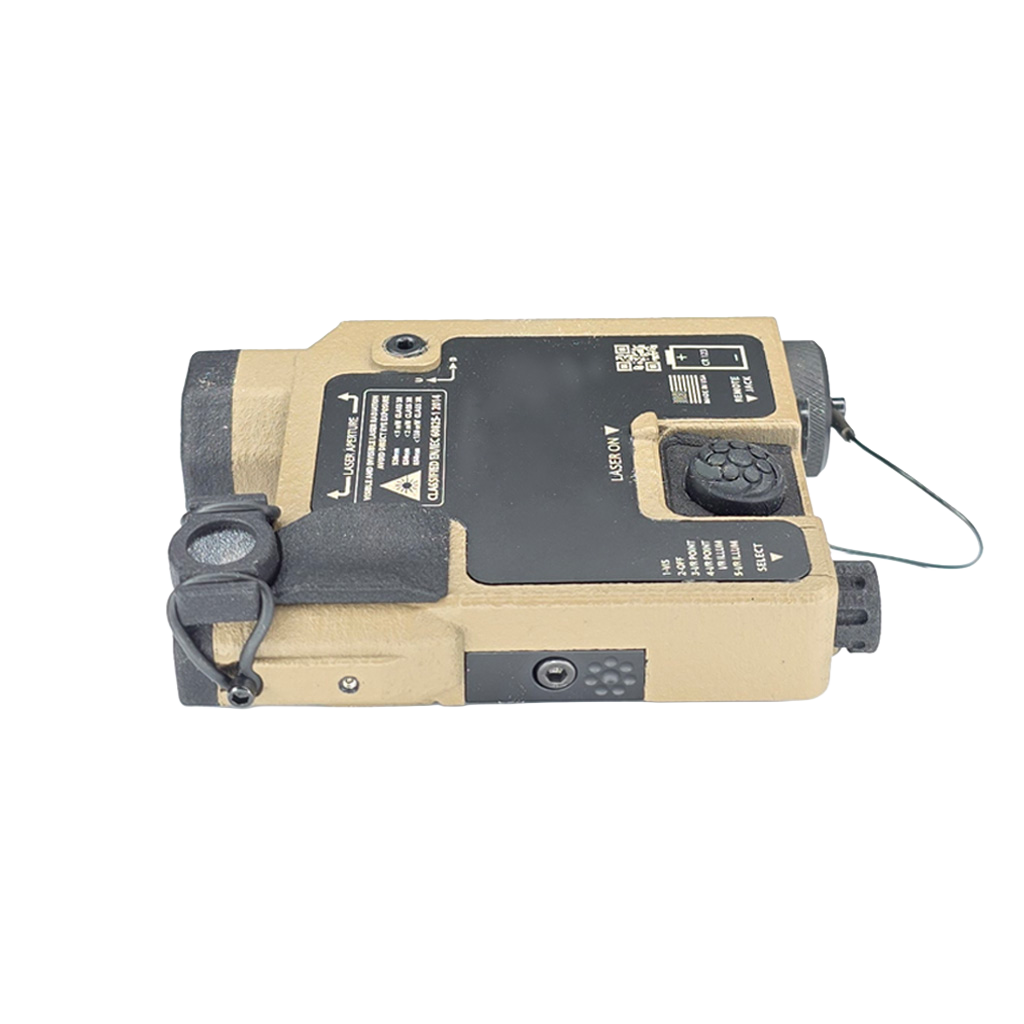

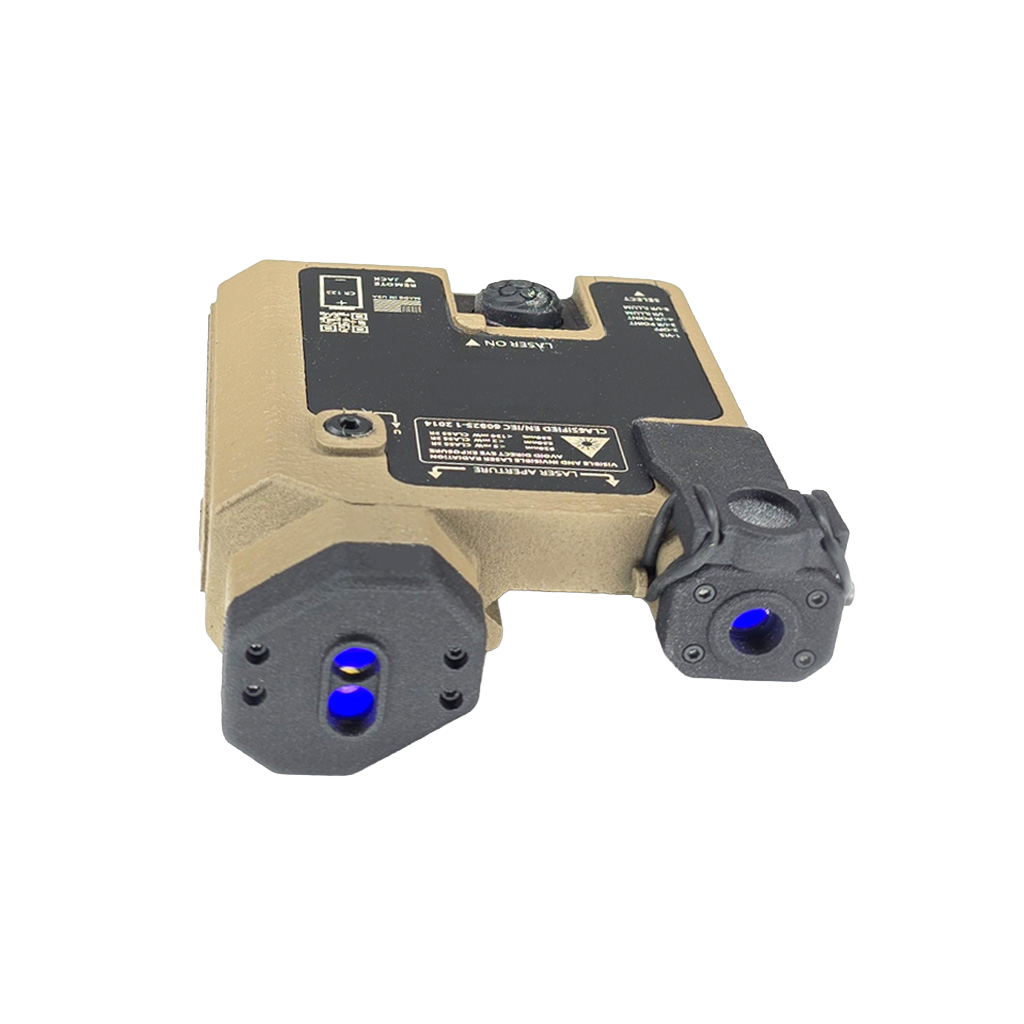

Description
Our Designate IR-V laser is the smallest, lightest, three beam tactical rifle laser available today. Built from synthetic nylon, this laser is designed to withstand recoil and will perform in all weather conditions.
The Designate IR-V’s set-it-forget-it zero allows the user to zero the visible laser just once. Both laser sights will remain precisely co-witnessed for accuracy.
The laser’s small footprint sits below the weapon’s line of sight and allows the user to effortlessly switch to iron sights. The user controls have been carefully engineered for reliability, ease of use, and minimal drag.
The newly added illuminator utilizes VCSEL technology providing illumination with exceptional distance and beam quality.
The included CQB filter diffuses the beam and provides perfect illumination for close-up and indoor work where long-range illumination is not needed.
Key Features
- Visible green laser / IR laser / IR laser with VCSEL illuminator
- Three beam laser operation with diffuser filter
- MIL-STD crane remote switch connector
- Arisaka Defense 1913 Picatinny rail mount
- Arisaka Defense fire control button (momentary / constant)
- Easy-to-use selector switch: visible green / off / IR / IR with illuminator
- Intuitive “user only” activation light
- Windage / elevation adjustable — green slaves IR
- Remote pressure switch (optional)
- CR123 battery (1) included
Technical Specifications
| Visible Laser | 520nm green |
| Output Power | > 5.0 mW Class 3R |
| Beam Divergence | .5 mrad |
| Wavelength | 520nm |
| Range | > 50 m daylight |
| IR Laser | 830nm infrared |
| Output Power | > 2.5 mW Class 3R |
| Beam Divergence | .5 mrad |
| Range | >1000m |
| VCSEL Illuminator | 850nm infrared |
| Output Power | > 130 mW Class 3R |
| Beam Divergence | 3° |
| Beam Pattern | round |
| Range | > 300m |
| Weight w/Battery | 193g / 6.8oz |
| Dimensions | 9.65 × 7.37 × 2.97cm / 3.8 × 2.9 × 1.17in |
| Height Above Rail | 1.27cm / 0.5in |
| Battery | CR123 (1) |
| Battery Life | >5 Hours |
| Waterproof | > IP68 rating |
| Operating Temp | -20° to 60°C / -4° to 140°F |
| Clamp | 7075 series aluminum |
| Housing | 3D printed synthetic nylon with Cerakote finish and embedded steel insert for clamping screw |
Includes

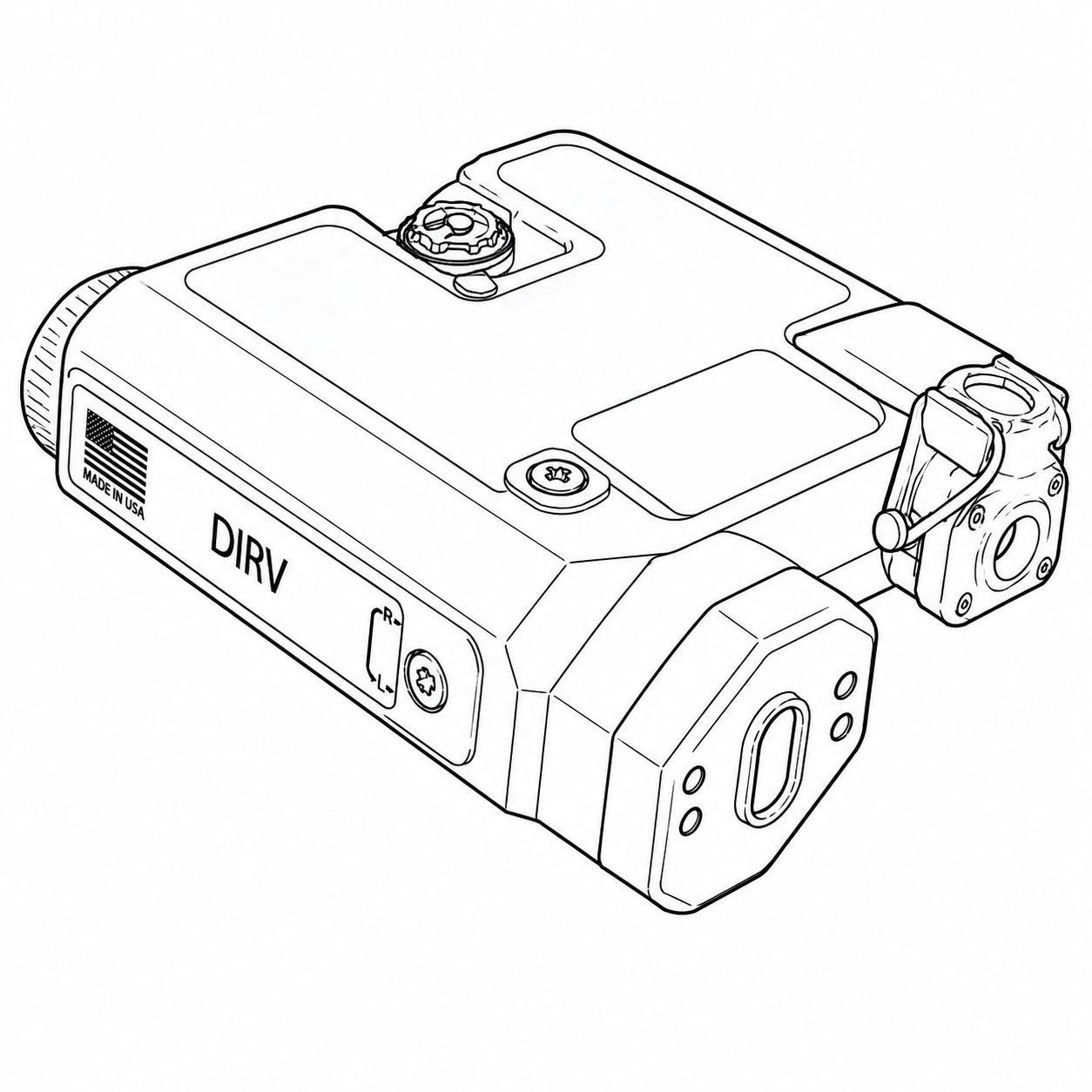

DIR-V Aiming LaserAllen KeyCR123A BatteryDigital Manual
